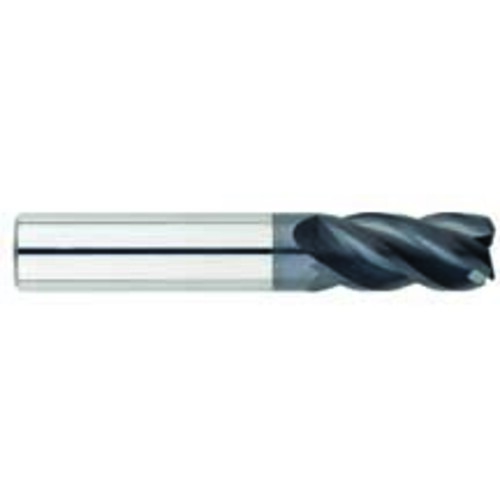

7/16″ × 7/16″ × 1″ × 2 3/4″ 0.0150-0.0200″ C/R 4 Flute Single End Carbide HPE High Performance End Mill-AlTiN Series/List #5994
Corner Radius End Mill; 7/16″ Dia. × 1″ LOC × 7/16″ Shank Dia. × 2-3/4″ OAL ; 4 FL ; Carbide ; AlTiN ; Series 5994
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 7/16″ | Applicable Material | | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Corner Radius (RE) | 0.015″ - 0.02″ |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Single End |
| Overall Length (OAL) | 2-3/4″ | Length Group | Regular |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | HPE Ultra-High Performance End Mills |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4375″ |
| Flute Helix Angle (FHA) | Variable | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5994 |
| End Shape | Corner Radius | Corner Radius (RE) / Chamfer Width (CHW) | 0.015″ - 0.02″ |
| Usable Length (LU) | 1″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.50000
Package Weight
0.21
