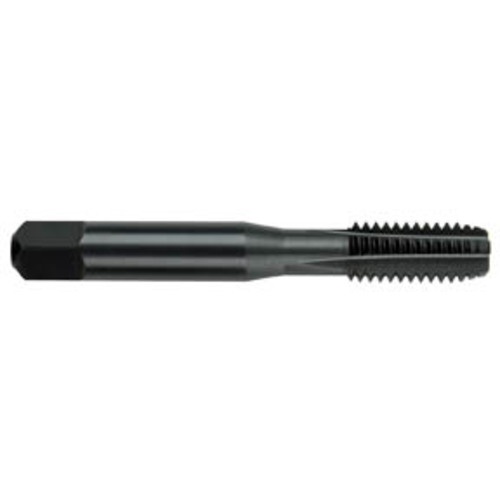

#10 NC, 24 TPI, 3 -Flute, Semi-Bottoming Straight Flute Tap Series/List #2094

‹ ›

#10 NC, 24 TPI, 3 -Flute, Semi-Bottoming Straight Flute Tap Series/List #2094

Item # MT3330140

UNSPSC: 23241615

Brand: Morse Cutting Tools

MFG#: 30140

UPC #: 686125301408

Quantity Available

Thread Diameter Size (TDZ)

#10

Cutting Edge Material

HSSCo-PM

Threads per Inch (TPI)

Chamfer

2 to 3 Threads

Thread Standard

Coating

Black Oxide

Overall Length (OAL)

‎2-3/8″

Flute Type

Straight

Thread Cutting Part Length (THL)

1/2″

Style

Semi-Bottoming

Usable Length (LU)

1/2″

Measurement Type

Machine Screw

Flute Count (NOF)

Series/List #

2094

Applicable Material

| Cast Iron |

Thread Size

‎#10 - 24

Product Features

Remarks

‎• HPT†- High Performance Tap - Cast Iron• Recommended for all types of gray, ductile and malleable cast iron.• Straight Flute• Steam Oxide Over Nitride Finish features a hard abrasion resistant Nitrided Base for enchanced tool life in abrasive materials including cast iron. Steam Oxide surface treatment helps toughen the nitride base, reduces friction, loading and galling, helps retain cutting fluids, improves thread† qualtiy and extends tool life.• Semi-Bottoming Style (2-3 thread chamfer) allows threading close to the bottom of blind holes but cuts more efficiently than standard bottoming taps due to a slightly longer chamfer which distributes the cutting load over greater number of teeth.• CNC Reduced Neck Design enhances chip evacuation and cutting fluid flow to the cutting teeth for reduced friction, heat and galling. Also reduces contact between the tap the work piece.• P/M Powder Metallurgy High Speed SteelPremium Steel Engineered For:† Hardness / Wear Resistance / Tool / Heat Resistance / Toughness and Strength / Performance under Difficult Cutting Conditions / Higher Cutting Speeds / Increased Productivity

Country of Origin

United States

Shipping Info

Package Length

3.00000

Package Width

.25000

Package Height

.25000

Package Weight

0.02
