| Thread Diameter Size (TDZ) | 9/16″ | Coating | Uncoated |
| Thread Standard | NC | Overall Length (OAL) | 3-19/32″ |
| Standard | NC | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 12 | Flute Count (NOF) | 4 |
| Flute Type | Straight | Cutting Edge Material | HSS |
| Thread Tolerance Class (TCTR) | H3 | Quantity | 3 |

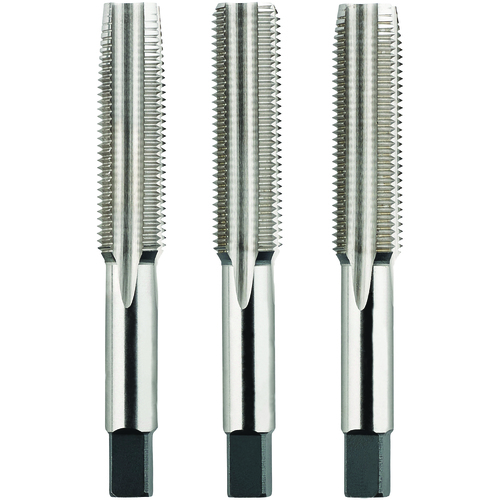

| Style | Straight Flute Hand Tap Set | Measurement Type | Inch |
| Tool Type | General Purpose Hand Taps | Series/List # | 2046 |
| Flute Length | 1-21/32″ | Contains | Taper, Plug, Bottoming |
| Cutting Direction (HAND) | Right Hand | Thread Size | 9/16″ - 12 |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. | Country of Origin | United States |
Shipping Info
Package Length
5.35430
Package Width
3.38580
Package Height
1.18110
Package Weight
0.457
