| Threads per Inch Minimum (TPIN) | 28 | Coating | Uncoated |
| Thread Standard | | ANSI | UN | Metric | | Measurement Type | Inch |
| Threads per Inch Maximum (TPIX) | 56 | Overall Length (OAL) | 1-1/2″ |
| Overhang Minimum (OHN) | 0.02″ | Minimum Bore Diameter (DMIN) | 0.09″ |

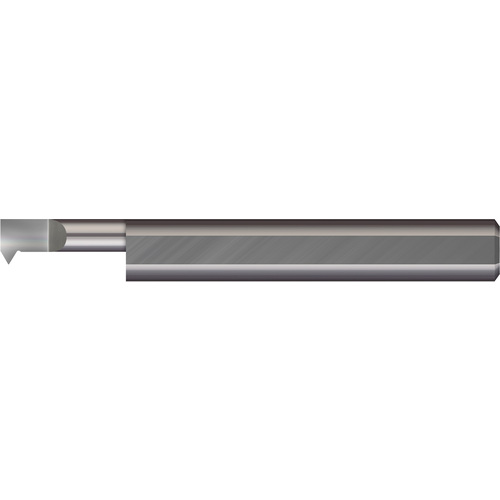

| Functional Width (WF) | 0.08″ | Tool Type | Internal Threading Tool|Single Point |
| Cutting Direction (HAND) | Right Hand | Cutting Length | 0.35″ |
| Cutting Edge Material | Carbide | Internal/External | Internal |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Body Material | Solid Carbide |
Product Features
| Country of Origin | UNITED STATES |
Shipping Info
Package Weight
0.08
