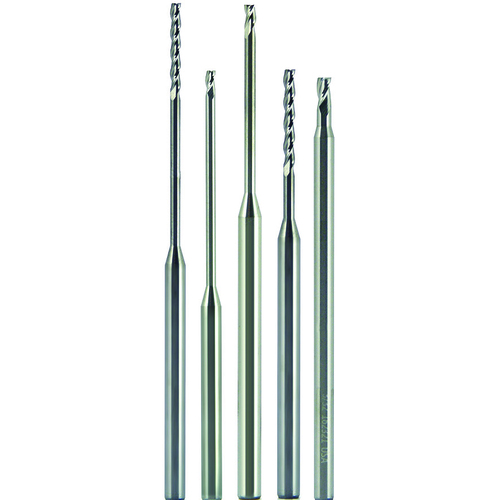

0.0350″ × 1/8″ × 0.0520″ × 2 1/2″ 3 Flute Single End Carbide Finishing Center Cutting End Mill-ALTiN Series/List #5916T
SQ End Mill; 0.035″ Dia. × 0.052″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 3 FL ; Carbide ; AlTiN ; Series 5916T
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 0.035″ | Usable Length (LU) | 0.105″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Application | Finishing |
| Depth of Cut Maximum (APMX) | 0.052″ | Tool Type | Miniature End Mill |
| Overall Length (OAL) | 2-1/2″ | Length Group | 0 |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Finishing |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.035″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Series/List # | 5916T |
| End Shape | Square | Trade Name | NANO CUT |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.12500
Package Width
.37500
Package Weight
0.018
